PEAKS Studio 8.5 New Features

Home / PEAKS Studio 8.5 New Features

PEAKS Studio 8.5 New Feature Highlights



Read our application note for SILAC-based quantitative proteome analysis with PEAKS.

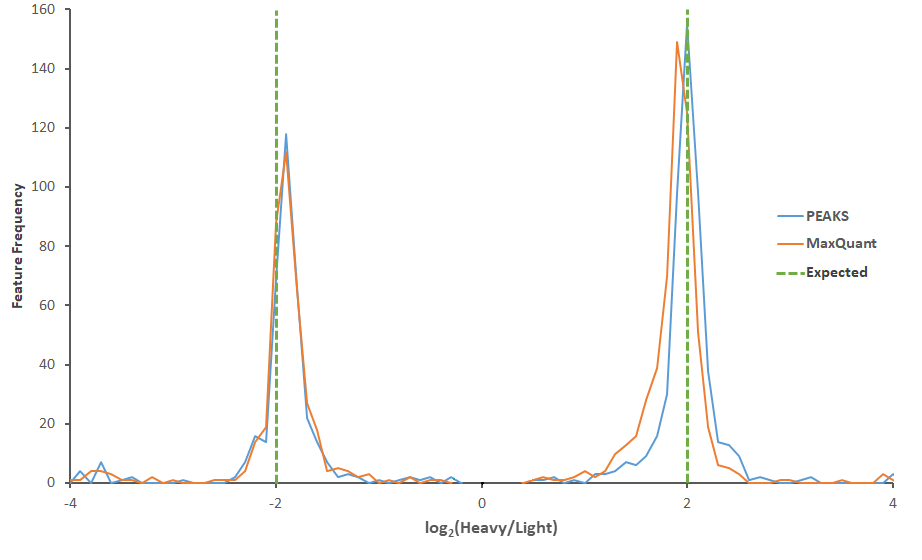

SILAC MQ vs PEAKS
PEAKS SILAC quantification provides comparable results to MaxQuant.


  • Top-three unique peptides selected for LFQ
  • Improved LFQ accuracy by enabling exclusion of 1) peptides with both modified and unmodified forms, and 2) redundant peptides
  • Peptide-level quantification provided in peptide table

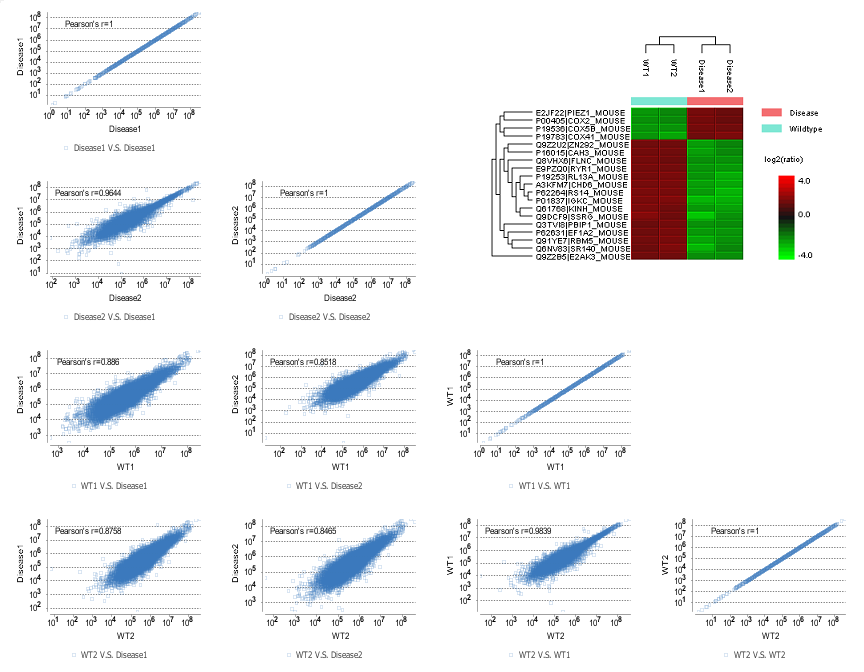

  • Sample clustering and correlation views

PTM Profiling

  • Enhanced PTM profiling enabled in:

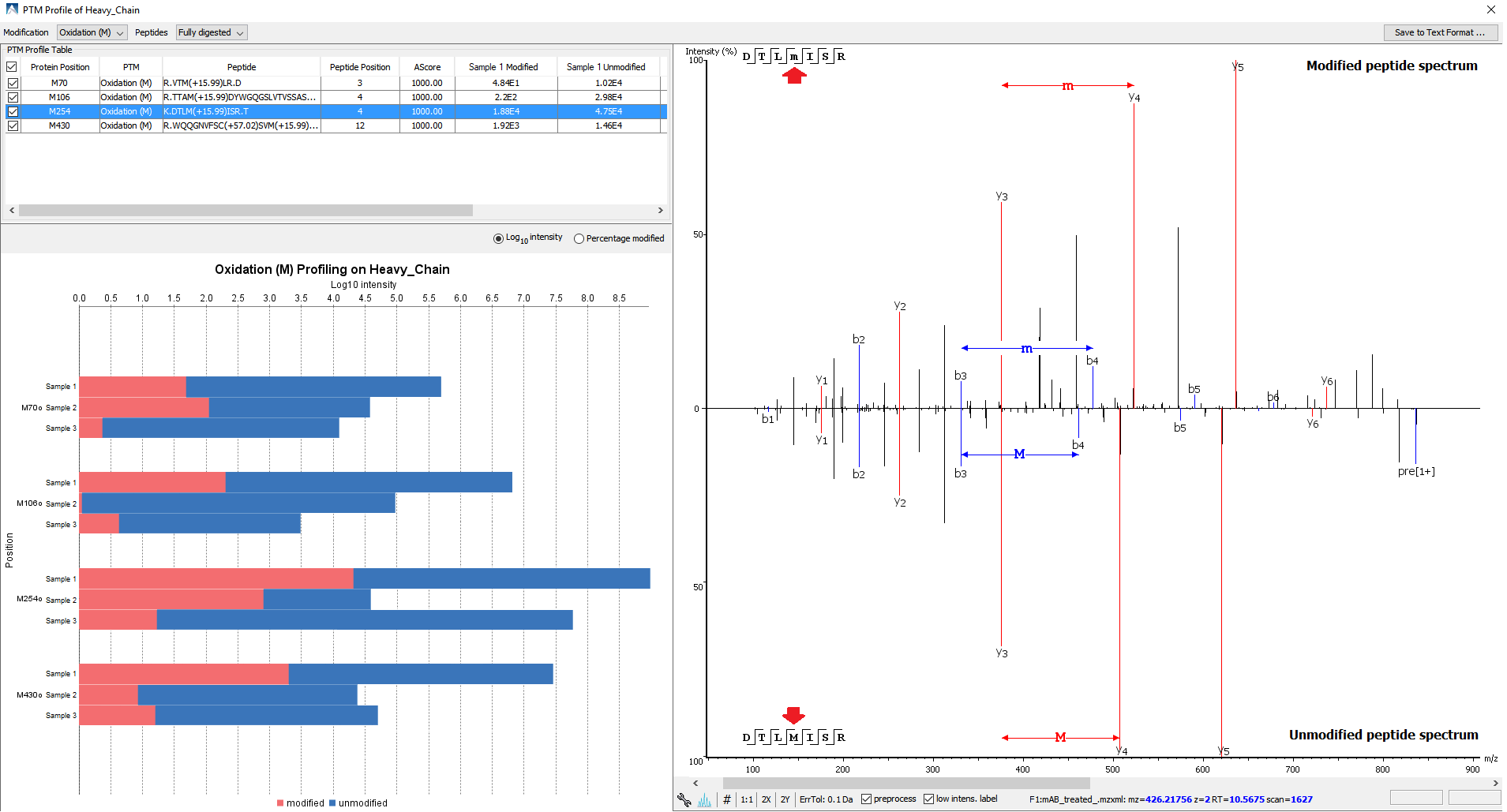

    • Identification result (LEFT): multi-sample PTM comparisons; MS2 spectra comparison of modified v.s. unmodified peptides

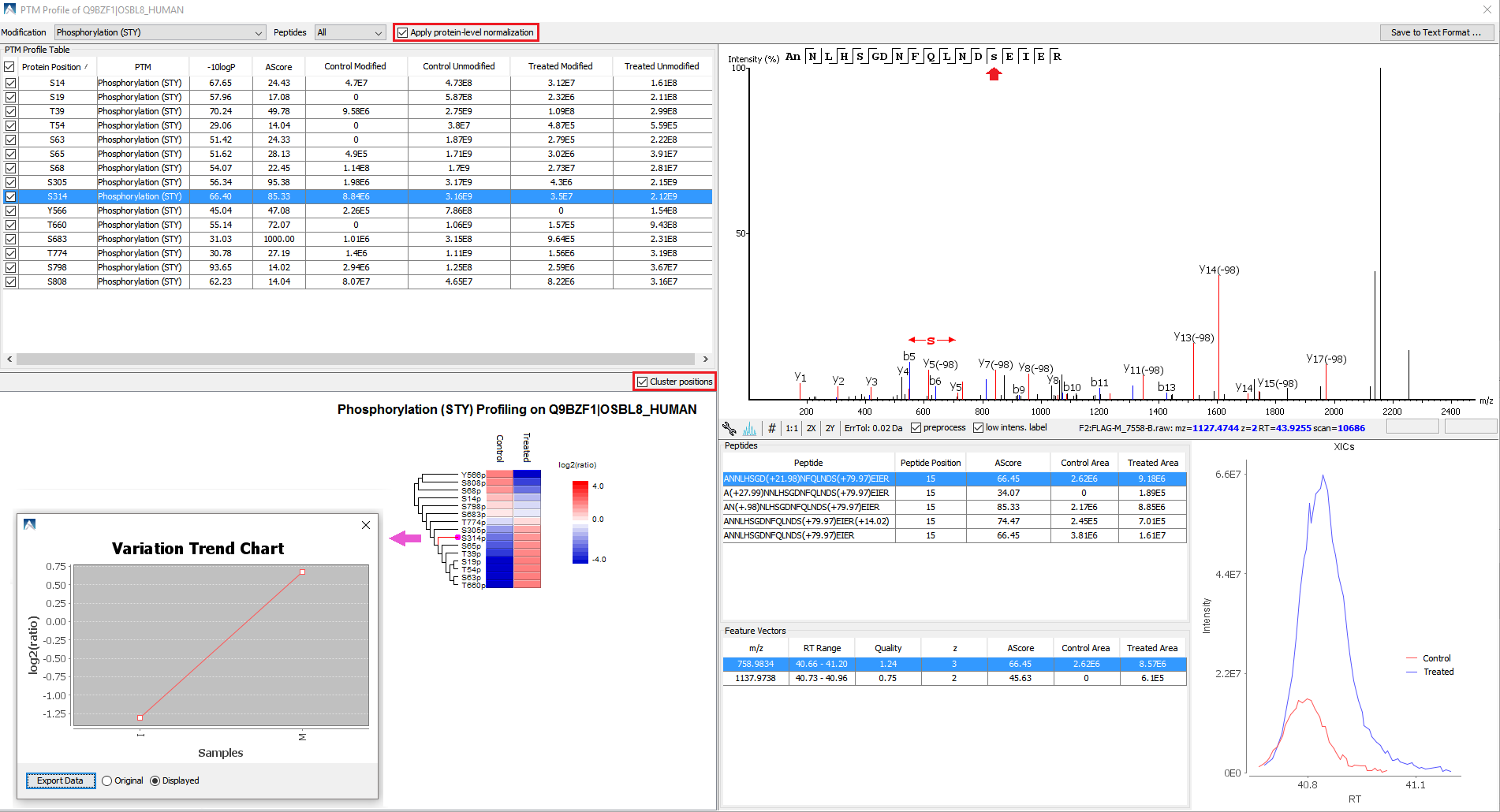

    • Quantification (Q) result (RIGHT): confident PTM quantitation filtered by A-score or minimum ion intensity threshold; normalized by protein expression levels; PTM site clustering; modified peptide / feature details

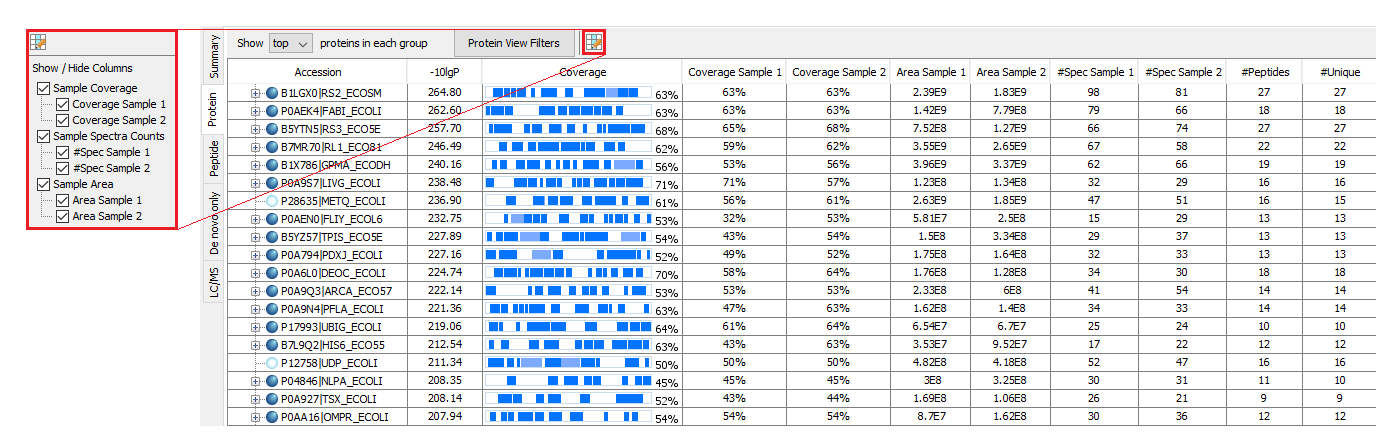

Global Comparative View

  • Protein/peptide spectral counts and MS1 area in each sample provided in identification result for semi-quantitative analysis

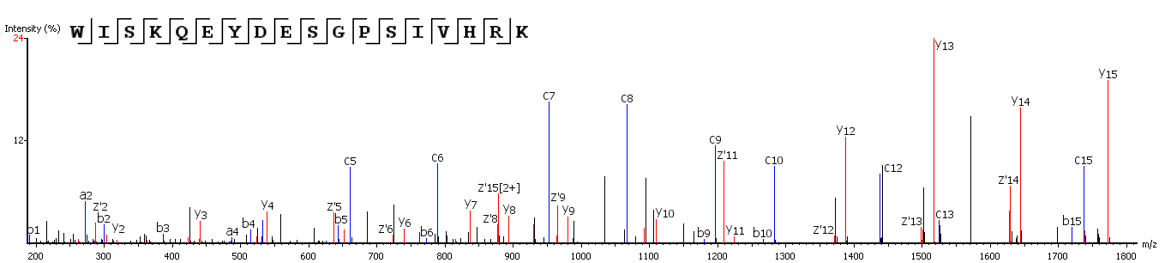

EThcD Data Analysis

  • Advantages of EThcD fragmentation enables confident peptide identification
